Medical High Speed ​​Case Erector With Optional Hot Melt Glue For Cardboard Box Cardboard

1 Set
MOQ
Medical High Speed ​​Case Erector With Optional Hot Melt Glue For Cardboard Box Cardboard
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Type: Wrapping Machine
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
After Warranty Service: Video technical support, Online support
Local Service Location: United States
Showroom Location: United States
Application: Medical
Packaging Type: Cartons, case
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V 50Hz 3P
Dimension(L*W*H): L2372*W1210*H1820mm
Weight: 1000 KG
Certificação: CE
After-sales Service Provided: Online support, Video technical support
Warranty: 1 Year
Key Selling Points: Easy to Operate
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1Year
Core Components: PLC
Speed: 20-25 boxes/min
Tape: W48-72mm
Table Height: 950mm
Informação básica
Certificação: CE
Condições de Pagamento e Envio
Packaging Details: Export standard wooden case
Descrição de produto
Products Description

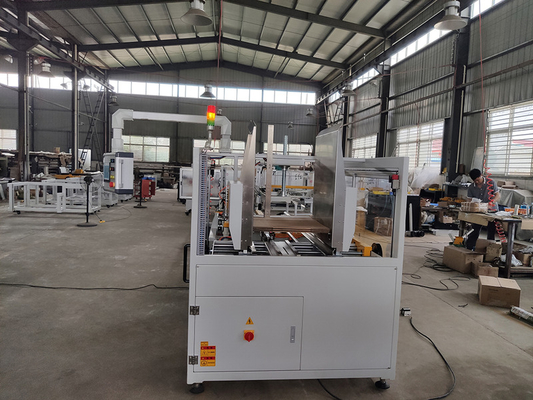

High speed case erector YPK-4025.

YPK-4025 high speed box erector machine is a horizontal box erecting and bottom folding machine, which adopts the up-suction box erector method with high quality and efficiency. It can open 25 boxes per minute, which is quicker than the same type of box erector machine, mainly used in the food industry.
Product Paramenters
Model
YPK-4025
Voltage
220/380V 50/60Hz 3P
Power
2KW
Speed
20-25 boxes/min
Table Height
950mm
Air
5kg/cm2
Applicable Carton
L240-510mm;W190-400mm;H120-400mm
Tape
W48-72mm
Machine size
L2372mm*W1210mm*H1820mm
Weight
1000kg
Product Advantages
Main characteristics:
1.Using the man-machine interface control, real-time action status display and alarm function. 2.The unpacking speed can be adjusted arbitrarily (controlled by frequency converter). 3.Door opening safety protection function, include door opening mechanical stop and alarm, light flashing. 4.Automatic warning function remained there is no carton in the material tank, or no tape alarm function. 5.The cartons are stored horizontally, and empty cartons can be replenished at any time without stopping the machine, which saves time and improves efficiency. 6.This machine can complete the carton suction, unpacking, forming, folding, sealing and other packaging processes at one time.
Custom Product Display
Our workshop
Frequently Bought Together
Company Profile
Qingdao Ausense has been established in 2008, which focus on the planning, R&D and manufacturing of automatic packaging production line. Such as automatic carton packing line, shrinking wrapping line, fully automatic pallet strapping line, conveyor system and so on......
Ausense main brand is YUPACK, All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Since 2017, Qingdao Ausense had successfully introduced robots into our end of packaging production line which can effectively integrate into the application of enterprise MES manufacturing execution system, and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.
