Automatic Food Sucker Pick Up And Form Carton Box Case Erector Machine

1.0 Sets
MOQ
Automatic Food Sucker Pick Up And Form Carton Box Case Erector Machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Type: SEALING MACHINE
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Energy & Mining, Other
Showroom Location: None
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Textiles
Packaging Type: Cartons, CANS, Bottles, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case
Packaging Material: Plastic, Paper, Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 110/220V
Dimension(L*W*H): L3000 mm,W2600 mm,H2000 mm
Weight: 1050 KG
Warranty: 1 Year
Key Selling Points: Easy to Operate
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Other, PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure vessel, Pump
Max Speed: 20pcs/min
Informação básica
Condições de Pagamento e Envio
Supply Ability: 1000 Set/Sets per Year
Descrição de produto

Welcome to >>>

Shanghai Wanerxin Intelligent Technology Co., Ltd.
Products Description

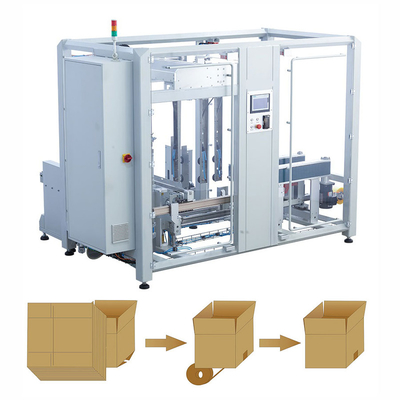

High-speed servo vertical carton erector
High-speed servo vertical carton erector is designed for high requirements of box ， machine adopts electric eye automatic induction, servo control and drive design to ensure four sides of the box can be accurately grabbed and formed by the suction cup ，to make 90 degree in four corner of box， Servo control of the whole storage ， Simulation of automatic induction door opening system ， Movable gate design to break tradition carton erector defect of scratch the surface of the box when it take box by suction cups ， Protect all side of box ， suction cup can automatically open the feeding when it grabs the carton ， when suction done will closed, no box drop ， high efficiency of box forming 。 horizontal form mechanism to flaps bottom ，fast peed， Better protect of box ， even if the box is wrinkled, soft, broken cardboard can be easily formed ，speed is 20 boxes per minute， widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries 。
Specifications
Product Name
High-speed servo vertical carton erector
Speed
Up to 20 cartons/min
Adhesive Tape Width
W48mm/60mm/75mm
Air consumption
300 NL/min
Air supply
5-6kg/cm³ /0.6Mpa
Carton Size
Length：250-600mm Width：180-450mm Height：150-500mm
Machine Size
L3000 mm × W2600 mm × H2000 mm
Power
380V 50Hz   3KW
Machine Weight
1050Kg

Features

High Efficiency Form:90° box form, fast and stable, even if the carton has a lack of wrinkles can be form Protection: Dual safety loop design ，when open the door or press E-stop whole machine will stop, CE Compliant High Stability:The clamping belt adopts large area flexible clamping, box transport will not jump, not need the press plate High Speed:Adopt new style tape head, tape speed 50m/min Ergonomic aesthetics:Open and sliding design of horizontal box storage, add box is more convenient Easy Opteration:Humanized operation interface and flexible data storage, convenient to change different box size 24 hours no stop:Replace the tape not need stop machine, continuous forming box without stop

Please click here >>> Contact us for more factory prices,shippping and discounts
WANERX - Intelligent integrated packaging service provider
As a high-end technology-based enterprise focusing on R&D, manufacturing and sales of carton packaging, palletizing, cartoning machines and so on, Wanerxin has been unanimously recognized and praised by countless domestic and foreign customers with its high-quality products and overall solutions. It also helped some customers to complete the company's transformation from manual operation to automated operation, which greatly saved labor costs, increased output value, and truly maximized benefits.
Packaging & Shipping
Wrap film
Plywood Case
Sea Shipping
FAQ
Q1: What is your company’s main products? Automatic flat cardboard palletizing system welding wire coil and electrode rod automatic packaging system The end of packaging line Carton & case erector,Carton & case packer,Carton & case sealing,Inkjet coder,Palletizer machine,Film shrink wrapper packing machine,etc Our packaging line can be customized according to the customer's site requirements, capacity requirements, and other requirements.
Q2:Are you manufacturer or trading company? We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.
Q3:Where are you located? Is it convenient to visit you? Our factory is located in Shanghai,China. So Traffic is convenient.
Q4:How can you guarantee quality? 1.We have completed working system and procedures and we follow them very strictly. 2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced. 3.The electrical pneumatic components are from the world famous companies, such as Germany's Siemens, France’s Schneider,etc. 4.We will do strict test running after the machine is finished.
Q5:Can you design the machine according to our requirements? Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q6:Can you offer overseas technical support? Yes. We sure support dispatch engineers to your company to set the machine and train your worker if needed.
Q7: Why our customers trust and choose us ? 1.Manufacturer 2.We Have Stocks 3.Delivery Fast 4.Senior Engineer 5.Competitive Price 6.High Quality 7.Strict Quality Control 8.Years of experience in the packaging industry 9.Provide Test 10.Varity of Goods 11.Excellent After-sales Services 12.Advanced Machinery and Equipments.
Q8:If you will send a inquiry, what we should know: 1. What's kind of products you are production and want packing ? 2. Please tell me the production speed ?  3. We also need to know you packing pattern ? 4. How about you product size ?
If you have more questions on our product, please send us an inquiry in the below. Commonly, you will get reply in 24 hours !
