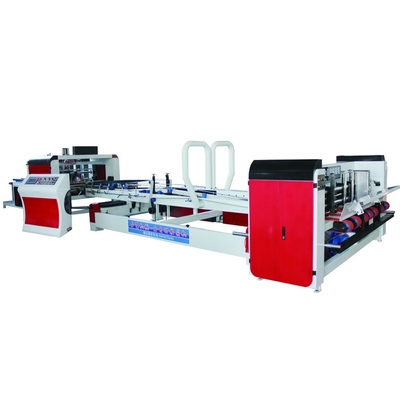

Carton Box Folder Gluer Machine Corrugated Box Folding Gluing in Gluing machines
Main function :
Carton Box Folder Gluer Machine Corrugated Box Folding Gluing in Gluing machines
This machine is applicable to straight line box , normal boxes . Composed by three parts :
Feeder section , folding section , Convey and Compression section .
Each part of the machine installed with independent electric engine and operation desk ,quite convenient for operation ;
The electric appliance adopts the PLC control model which can exactly control quantity and time of cartons output from the notation unit . The PLC Adopts Delta which is famous brand Taiwan . The main motor adopts Siemens ,Easy operate ,
Average speed is 150 sheets / Min .
Energy conservation and high speed , saving labor cost .
Automatic folder gluer machine easy operation and running stable ,High speed ,saving labor cost .
It is a wonderful choose for packing and printing factory .
Product introduction :
Feeding section :
1. Vacuum suction feeding to feed warping paperboard easily .
2. Quality electromagnetic clutch and brake adpoted ,feeding section controlled independent ,operation easily carton box folder gluer machine .
3. Scorer wheel adjustable, suitable for 2-8mm thick paperboard
4 .Second creasing struction can impress again the paperboard which was not cresed well
Gluing and folding section
1 Simpless struction and high reliability ,glue quantity adjustable, cleaning easily carton machine .
2 Stainless steel glue wheel adopted , long life and saving glue cost .
3 Imported quality rubber belt adopted ,automatic folding carton box folder gluer machine.
4 With paperboard rectify device and creasing rectify device .
Counter and Stacker Section :
1 Stacking and counting are simple and reliable carton box folder gluer machine .
2 Digital control , operation easily and reliable .No-stop put in data and automatic counting
3 With rectification function .
4 Counting and put out by pneumatic ,stable and quickly .
