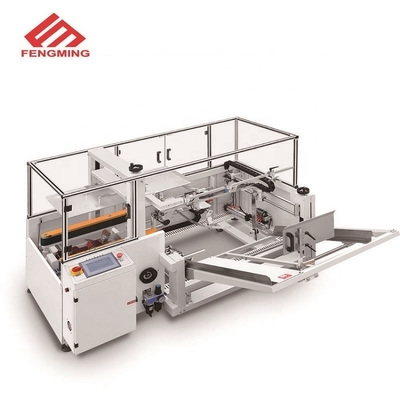

Features: manually adjust the width, height. After tank into the vertical box frame, press the start button, the automatic tank rack sucker suction box, front and rear folding cover, fold the cover is automatically pushed into the paste belt, introduced by the conveyor belt sealing once completed, without human intervention operation, automation strong, two points around the belt drive.
CONFIGURATION
1.This equipment line or stand-alone operation, automatic suction box, box, folding bottom, sealing tape, once completed
2.Stick with a solid performance and precision, smooth operation, long life and good stability
3.Standard equipment specifications, according to the need for equipment to widen, heightening custom
4.Standard table height is 630 mm (other requirements can be customized)
5.The use of advanced technology manufacturing, durable structure, preferably with a high-quality electronic and pneumatic components
TECHNICAL SPECIFICATION | |
Applicable carton size | 150-500mm(L)*120-500mm(W)*150-500mm(H) |
Conveying speed | 20 m / min |
Equipment size | 2060mm(L)*980mm(W)*1520mm(H) |
Unpacking speed | 5-10 boxes/min |
Power supply | 220/380V 50Hz(Alternative use) |
Maximum power consumption | 0.18kw |
Apply pressure | 6kgf/cm² |
Tape width | 48/60/75mm(Alternative use) |
Equipment weight | 495kg |
