KXJ-W30 High Speed ​​Horizontal Type Case Erector Hotels Forming Carton To Box Machine CLPACK

1 Set
MOQ
$23,176.00(1 - 4 Sets) $23,126.00(5 - 9 Sets) $23,076.00(>=10 Sets)
preço
KXJ-W30 High Speed ​​Horizontal Type Case Erector Hotels Forming Carton To Box Machine CLPACK
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops,
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC
Condition: New
Automatic Grade: Automatic
Usage: Paper Forming Machine
Voltage: AC380V, AC380V
Dimension(L*W*H): 2372*1210*1820mm
Weight: 1000kg
Warranty: 1 Year, one year
Key Selling Points: Easy to Operate
After-sales Service Provided: Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
Model: KXJ-W30
Size of carton: (240-510)*(190-400)*(120-400)mm
Sealing speed: 30 case/min
Carton board storage content: 80pcs
Tape size: 48-75mm
Gas pressure: 5kg/cm2
Specific air consumption: 300NL /min
After Warranty Service: Video technical support, Online support
Local Service Location: None
Certificação: CE Certificate
Informação básica
Certificação: CE Certificate
Model Number: KXJ-W30
Condições de Pagamento e Envio
Packaging Details: Standard export wooden case package or carton.
Supply Ability: 100 Set/Sets per Month
Descrição de produto
Product Description

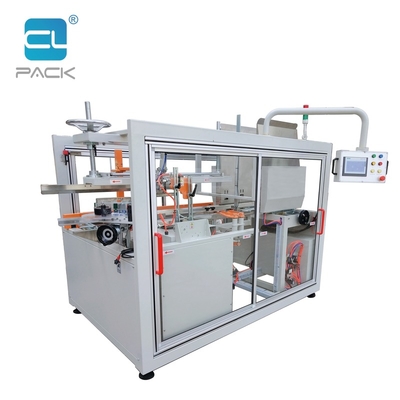

KXJ-W30 Horizontal Type Packing Machine Carton Box Forming Machine

Equipment introduction:
High-speed case erecting machine based on years of actual combat experience, the cam drive system and connecting rod are combined
to control the entire machine action. The mechanical action is fast, accurate and stable. It is one of the stable high-speed
carton forming machines on the market. The machine is small in size, easy to operate and easy to adjust. This type of unpacking
machine is widely used in mass production of packaging, printing, color boxes, greeting cards, photo albums, photo frames,
medicine, electronics, daily chemicals, cosmetics, auto parts, hardware, food and other mass production industries.

Product features:
(1.) Cost-effective accessories: use durable, cost-effective parts, electrical components and pneumatic components;
(2.) Automatic warning: automatic warning reminds to replenish the carton; add a transparent plexiglass protective cover, open the
door and stop automatically, to avoid operation accidents;
(3.) Save man-hours. The whole machine adopts the cam continuous system, the mechanical operation is accurate, stable and durable;
the forming and sealing adopt stepless speed control, and the speed can be adjusted at will;
(4.) Can be matched with the assembly line. This unpacking machine can be operated as a stand-alone machine, or it can be used
with an automated packaging assembly line；
(5.) PLC+ man-machine interface;
(6.) Cylinder control;
(7.) Wear-resistant conveyor belt;
(8.) Photoelectric sensor;
(9.) Horizontal type carton forming;
(10.) Rapid prototyping, saving time and effort;


Product parameter:

Model
KXJ-W30
Power/Voltage
746w(AC380V 3￠ )
Size of carton (L×W×H)
(240-510)×(190-400)×(120-400)mm
Sealing speed
30 case/min
Carton board storage content
80pcs
Tape size
48-75mm
Gas pressure
5kg/cm2
Specific air consumption
450NL /min
Dimension (L×W×H)
2372×1210×1820mm
Weight
1000kg
Detailed Images

Machine Parts

Name: PLC

Brand: SIEMENS

Original: Germany

The world's top 500 companies, and the world's leading companies in the field of electrical and electronic engineering.

Machine Parts

Name: photoelectricity
Brand: LEUZE
Original: Germany
A full range of photoelectric sensors with a wide range of functions can basically solve all "detection problems".

Machine Parts

Name: Air switch
Brand: SCHNEIDER
Original: France
Schneider Electric is one of the industrial pioneers of France. The world's top 500 companies and the world's top electric companies.

Machine Parts

Name: Motor
Brand: SEW
Original: Germany
Its production technology and market share are both world leaders, and it is world-famous in the field of international power transmission. It is known as "the pioneer in the world of transmission".

Packing & Delivery
Packaging
Size
288CM * 135CM * 194CM
Weight
1.1T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
