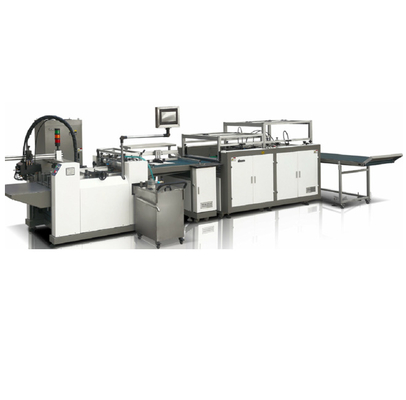

FM-700 Semi-automatic File Folder Making Machine
Semi-automatic machine for case making, lining and mounting, suitable for the production of binders, book covers, calendars and other paper over board items. Its user-friendly and compact design, together with the ease of operation and set up, makes this machine suitable for all production requirments.
The machine is composed of:
Sheet Feeder:
-Automatic lifting table.
-Pneumatically controlled feeding head lifts the sheet from the back.
Gluer:
-Top-surface gluing unit.
-Suitable for hot animal glue and for PVA glue.
-Vacuum transport-belt.
-It allows gluing all kinds of covering materials.
Boarder Feeder:
-Board is fed by hand.
-Has registerd guides for accurate board positioining.
Wrapper:
-It turns in the four sides of the wrapping material.
-Automatically tucks the corners with an innovative precision device.
-High power nip-roller pressing unit.
-Ensures high and constant quality unit.
Delivery Tray:
-It allows non-stop unloading.
Main Specification
| Model | FM-700 |
| Maximum Size | 450mm×720mm |
| Minimum Size | 130mm×210mm |
| Board Thickness | 1.0-3.0mm |
| Paper Weight | 100-200g |
| Maximum Speed | 10-20picecs/min |
| Power Supply | 10KW |
| Dimension(L×W×H) | 8500×2400×1500mm |
| Machine Weight | 3200kg |
Zhejiang Horda Machinery Co., Inc specializes in the post-printing process and paper packaging equipment developing and manufacturing. Our company was set up in 2007, and we have focused on the case making machine manufacturing for 13 years. The main products are automatic case making machine, cell phone box production line, wine case & cigarette case production line, automatic folding machine, gluing machine, cardboard slitting machine, flattening machine, etc, which are used for packaging products like wine, tea-leaf, mobile phones, craftworks and cosmetics, lever arch files, calendars, hardcovers, etc.
In the past ten years, we've been concentrating on the research and development of paper packing equipment. We have founded four series for dozens of hit products, including automatic case making machine, Wine&cigarette case production line, mobile phone case production line, collapsible box production line.
We set up a long-term friendly cooperation relationship with printing and packaging equipment agent in the countries and districts of America, Europe, Southeast Asia and Middle East and win great appraise from them.
We owned more than 40 types of National invention Patent and practical new patents, completely independent investment intellectual peoperty rights. Also we gained ISO 9001 Quality System Certification as well as CE Certification of our machine.
The production manager sends special personnel to inspect the production site from time to time,
and regularly organizes technical personnel as well as team leaders to conduct spot inspections
and make records in the workshop on a weekly basis. These performance is linked to the bonus
assessment of each team at the end of the month.
