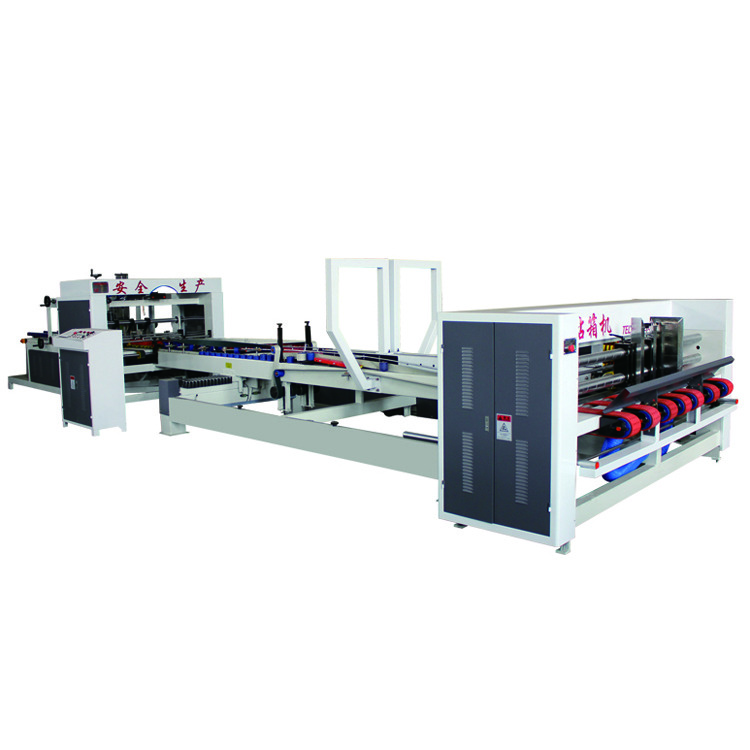

TY series full automatic box gluing machine is composed of vacuum paper feeding department, gluing and folding department and counting and stacking output department, digital display control, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode.Automatic paper supply, automatic gluing and folding, automatic counting, automatic stacking and output, average speed of gluing box is 200m/min, high speed, energy saving and labor cost saving.
Parameters :
Model number | TY-2600 | TY-2800 |
| Maximum paperboard size(mm) | 2300*1000 | 2600*1000 |
| Minimum paperboard size (mm) | 450*170 | 450*170 |
| Overall size (mm) | 12000*3200*1900 | 12000*3400*1900 |
| Power (kw) | 12 | 12 |
| Weight (kg) | 4000 | 4200 |
Machine parts list:
| 1 | Bearings | Harbin |
| 2 | Electric appliance | Siemens |
| 3 | PLC | Delta |
| 4 | Encoder | Delta |
| 5 | Touch screen | MCGS |
| 6 | Main motor | Hengshui |
| 7 | Draught fan | Shanghai |
| 8 | Conveyor motor | Taiwan |
| 9 | Conveyor belt | Shanghai |
Contact us >>
If you are interested in our products welcome to click to “contact us” |
Q:Are you a manufacturer ,or trading company ?
A:We are professional manufacturer of the carton machinery.
Q:How many manufacturer experience do you have ?
A:More than 20 years .
Q: How about the after-sale service ?
A:The machine warranty time is usually one year . In this one year, if the machine parts are broken ,we can send you new one for free .
