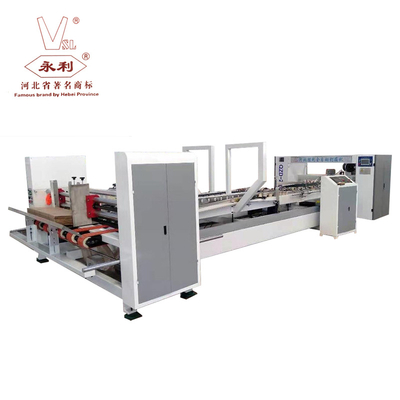

Corrugated Cardboard Stitching Gluing 2600 Automatic Corrugated Cardboard Box Folder Gluer Machine Folding Gluing Stitching Machine

1.0 set
MOQ
Corrugated Cardboard Stitching Gluing 2600 Automatic Corrugated Cardboard Box Folder Gluer Machine Folding Gluing Stitching Machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Type: Gluing Machine
Applicable Industries: Hotels, Manufacturing Plant, Carton packaging factory
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa,
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Motor
Condition: New
Application: Corrugated paperboard stitching gluing
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/440V
Dimension(L*W*H): 8100*3500
Weight: 3.7T
Warranty: 1 Year
Key Selling Points: High Productivity
Product name: Automatic Carton Box Folder Gluer stitcher
Feeding way: Automatic Feeding
Paper material: Corrugated cardboard
Speed: 50pieces/min
Max. width: 1300mm
Max.length: 2600mm
Min.length: 720mm
Min.width: 300mm
Height of feeding: 500mm
Air Pressure: 0.6-0.8Mpa
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, Viet Nam, Philippines, Peru, Saudi Arabia, Pakistan, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine,
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Certificação: CE/ISO9001
Informação básica
Certificação: CE/ISO9001
Condições de Pagamento e Envio
Supply Ability: 30 Set/Sets per Month
Descrição de produto



2600 Automatic gluing stitching all-in-one machine


Technical specification
HEBEISHENGLI CARTON EQUIPMENT MANUFACTURING CO LTD
1、Machine features:
The machine is composed of vacuum paper feeding part and stapling part. Digital display control, PLC computer amplitude modulation, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode, automatic paper feeding, automatic stitching and folding, automatic counting, automatic stacking output, high speed energy saving, labor cost saving.
2、Paper feeding department:
* Adopting the leading edge of the belt suction paper feeding way, accurate and reliable.
* Using high-grade electromagnetic clutch and electromagnetic brake system,so that the paper feeding part can be controlled independently,simple and reliable operation.
* The height of the press wheel can be adjusted.Suitable for cardboard thickness of 2-8mm.
* With the folding section linkage, frequency conversion speed regulation.
* The front baffle of the paper feeding department and the paper belt are adjustable.
3、Stapling department：
* Imported double servo driving,accurate,reduced mechanical transmission,can effectively prevent mechanical failure rate.
* Using touch screen operation,parameters (stitching distance, nail number, stitching type, tailgate) can be changed easily and quickly.
* The whole control system adopts Taiwan Yonghong PLC control system.
* All switches in the electric control box adopt Schneider brand.
* Bottom die、blade made of German tungsten steel (wear - resistant).
* The whole nail head is made of special steel and precision machined by computer.
* One minute size change, simple operation without experience, can stitch single nail, double nail, reinforcing nail.
* The paper feeding part counts automatically and sends out automatically after forming a bundle for easy binding.
* The nail distance can reach 100mm,can set on the display screen，can staple covered and uncovered carton.
* The cardboard thickness can be directly adjusted.
4、Automatic gluing part:
* Automatic gluing part adopts full electric control，automatically adjust the gluing position according to the size of the cardboard.
* The gluing width of the carton is 20-25mm, and the lower gluing method.
* The glue box can be moved left and right according to the type of carton.
* Gluing volume can be adjusted，stable，high capacity，easy to maintain.
* All the materials are pure stainless steel，never rust，resistant to various types of corrosion.
5、Automatic Folding Department:

* Automatic folding adopts full computer control，according to the size of the cardboard, automatically adjust the folding position and ganged with feeding unit，frequency control.
* Adopt imported high-friction belt and synchronous belt to transport paperboard，folding automatically，effectively avoid the phenomenon of scissors mouth caused by different cardboard thickness or different belt tightness on both sides.
* The feeding speed is synchronized with folding of the main machine, variable frequency speed regulation, can be controlled separately.
* After entering the size when replacing the product, It can be adjusted automatically. Convenient and fast.
* Indentation wheel, indentation knife, side wheel, slapping board, etc. can well control the occurrence of scissors mouth.
6、Parameter：
Max length (A+B)*2
2600mm
Power
6HP
Maximum size of A
800mm
Machine length
8100mm
Minimum size of A
200mm
Machine width
3500mm
Maximum size of B
500mm
Machine weight
3.7t
Minimum size of B
160mm
Machine speed
50 pieces/min
Max length(A+B)*2
2600mm
Stitching distance
30-100mm
Min length(A+B)
720mm
Stitching number
1-99
Max width(C+D+C)
1300mm
Pressure requirements
0.6Mpa
Min width(C+D+C)
300mm
Total power
13.45KW
Height of feeder
500mm
Power consumption
4.5Kw/H
7、Successful Project
Russia
Nigeria
Mexico
America
England
Brazil
Korea
Egypt
Turkey
Thailand
Pakistan
South Africa
Italy
Singapore
India
The United Arab Emirates
Saudi Arabia
France
Indonesia
Greece
