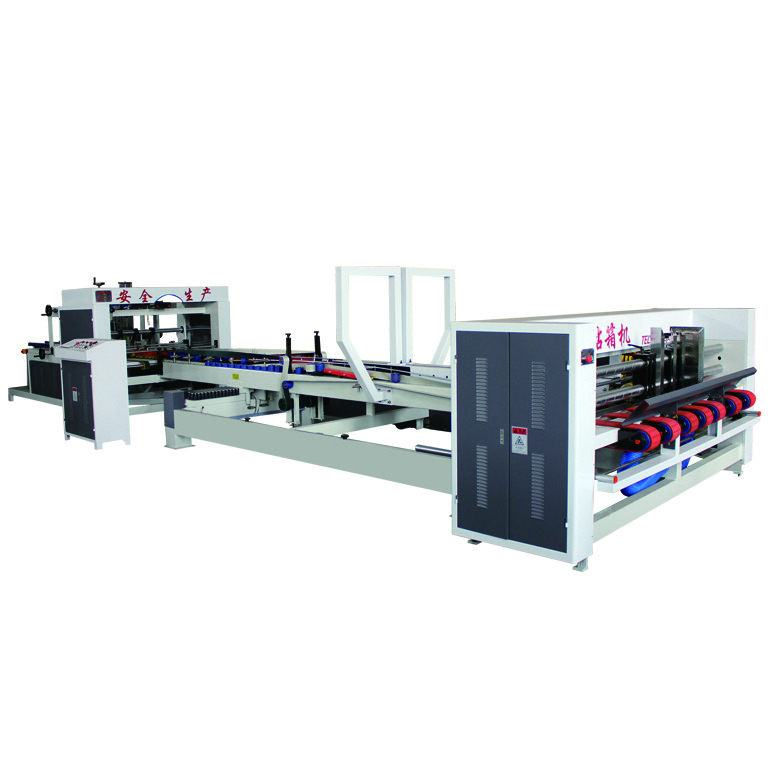

High speed automatic carton box folder gluer carton box making machine
Parameter
|
Model |
DH-2000 |
DH-2400 |
DH-2800 |
|
Max.Cardboard |
900*2000 mm |
900*2400 |
1200*2800 |
|
Min cardboard |
300*800 mm |
300*800 |
300*800 |
|
Size mm |
12000*2700*1750 |
12000*3100*1750 |
12000*3500*1750 |
|
Weight KG |
4000 |
4500 |
5000 |
|
Power KW |
7kw |
8kw |
10.5kw |
|
Cardboard thickness layer |
Three or five |
Three or five |
Three or five |
|
Control way |
PLC &touch screen |
PLC &touch screen |
PLC &touch screen |
Main function :
APACK of QF-AFG series automatic folder gluer machines
This machine is applicable to straight line box , normal boxes . Composed by three parts :
Feeder section , folding section , Convey and Compression section .
Each part of the machine installed with independent electric engine and operation desk ,quite convenient for operation ;
The electric appliance adopts the PLC control model which can exactly control quantity and time of cartons output from the notation unit . The PLC Adopts Delta which is famous brand Taiwan . The main motor adopts Siemens ,Easy operate ,
Average speed is 150 sheets / Min .
Energy conservation and high speed , saving labor cost .
Automatic folder gluer machine easy operation and running stable ,High speed ,saving labor cost .
It is a wonderful choose for packing and printing factory .
Product introduction :
Feeding section :
1. Vacuum suction feeding to feed warping paperboard easily .
2. Quality electromagnetic clutch and brake adpoted ,feeding section controlled independent ,operation easily carton box folder gluer machine .
3. Scorer wheel adjustable, suitable for 2-8mm thick paperboard
4 .Second creasing struction can impress again the paperboard which was not cresed well
Gluing and folding section
1 Simpless struction and high reliability ,glue quantity adjustable, cleaning easily carton machine .
2 Stainless steel glue wheel adopted , long life and saving glue cost .
3 Imported quality rubber belt adopted ,automatic folding carton box folder gluer machine.
4 With paperboard rectify device and creasing rectify device .
Counter and Stacker Section :
1 Stacking and counting are simple and reliable carton box folder gluer machine .
2 Digital control , operation easily and reliable .No-stop put in data and automatic counting
3 With rectification function .
4 Counting and put out by pneumatic ,stable and quickly .
